JavaFX HBox

JavaFX API具有将UI控件显示到场景图上的布局类。
HBox布局类将JavaFX子节点放在水平行中。 新的子节点附加到右侧的末尾。默认情况下,HBox布局尊重子节点的首选宽度和高度。
当父节点不可调整大小时,例如Group节点,HBox的行高度设置为子节点的最大首选高度。

默认情况下,每个子节点与左上(Pos.TOP_LEFT)位置对齐。

我们可以通过编程方式改变HBox的布局约束,例如边框,填充,边距,间距和对齐。

当处理不可缩放的子节点(如Shape节点)时,父节点会考虑Shape的矩形边界(ParentInBounds)的宽度和高度。

当处理诸如TextField控件之类可调整大小的节点时,父节点计算TextField水平增长的可用空间。

要在HBox中水平增长UI控件,请使用静态HBox.setHgrow()方法。

示例

以下代码将TextField控件设置为在调整父HBox的宽度时水平增长:

TextField  myTextField = new TextField();
HBox.setHgrow(myTextField,  Priority.ALWAYS);

请阅读下面的完整源代码。

import javafx.application.Application;
import javafx.scene.Scene;
import javafx.scene.control.TextField;
import javafx.scene.layout.HBox;
import javafx.scene.layout.Priority;
import javafx.scene.paint.Color;
import javafx.stage.Stage;

public class Main extends Application {
  @Override
  public void start(Stage primaryStage) {
    TextField myTextField = new TextField();
    HBox hbox = new HBox();
    hbox.getChildren().add(myTextField);
    HBox.setHgrow(myTextField, Priority.ALWAYS);
    // from =>w WW .yi  I BA I.C O M
    Scene scene = new Scene(hbox, 320, 112, Color.rgb(0, 0, 0, 0));
    primaryStage.setScene(scene);
    primaryStage.show();
  }

  public static void main(String[] args) {
    launch(args);
  }
}

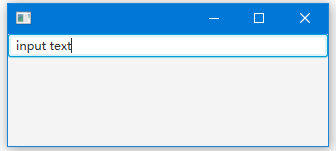

上面的代码生成以下结果。

示例2

以下代码向HBox添加了四个矩形,设置了HBox约束,并演示了HBox布局控件的许多间距属性。矩形节点不可调整大小。

import javafx.application.Application;
import javafx.geometry.Insets;
import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.layout.HBox;
import javafx.scene.shape.Rectangle;
import javafx.stage.Stage;

public class Main extends Application {
    @Override
    public void start(Stage primaryStage) {
        Group root = new Group();
        Scene scene = new Scene(root, 300, 250);
        // 5 pixels space between child nodes
        HBox hbox = new HBox(5);// by W w  W. y  I I ba I .c  O  M
        // 1 pixel padding between child nodes only
        hbox.setPadding(new Insets(1));
        Rectangle r1 = new Rectangle(10, 10);
        Rectangle r2 = new Rectangle(20, 100);
        Rectangle r3 = new Rectangle(50, 20);
        Rectangle r4 = new Rectangle(20, 50);

        HBox.setMargin(r1, new Insets(2, 2, 2, 2));

        hbox.getChildren().addAll(r1, r2, r3, r4);
        root.getChildren().add(hbox);

        primaryStage.setScene(scene);
        primaryStage.show();
    }

    public static void main(String[] args) {
        launch(args);
    }
}

上面的代码生成以下结果。

在HBox中增长

import javafx.application.Application;
import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.layout.HBox;
import javafx.scene.layout.Priority;
import javafx.scene.paint.Color;
import javafx.stage.Stage;

public class Main extends Application {
    public static void main(String[] args) {
        Application.launch(args);
    }

    @Override
    public void start(Stage primaryStage) {
        primaryStage.setTitle("");
        Group root = new Group();
        Scene scene = new Scene(root, 300, 250, Color.WHITE);
       // create  w W W.YI iB AI.C o M
        HBox hbox = new HBox();
        Button button1 = new Button("Add               ");
        Button button2 = new Button("Remove   ");
        HBox.setHgrow(button1, Priority.ALWAYS);
        HBox.setHgrow(button2, Priority.ALWAYS);
        button1.setMaxWidth(Double.MAX_VALUE);
        button2.setMaxWidth(Double.MAX_VALUE);
        hbox.getChildren().addAll(button1, button2);

        root.getChildren().add(hbox);
        primaryStage.setScene(scene);
        primaryStage.show();
    }
}
上面的代码生成以下结果。

设置HBox首选宽度

import javafx.application.Application;
import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.layout.HBox;
import javafx.scene.layout.Priority;
import javafx.scene.paint.Color;
import javafx.stage.Stage;

public class Main extends Application {
    public static void main(String[] args) {
        Application.launch(args);
    }// create W  WW . y II  b a  I . CO M

    @Override
    public void start(Stage primaryStage) {
        primaryStage.setTitle("");
        Group root = new Group();
        Scene scene = new Scene(root, 300, 250, Color.WHITE);

        HBox hbox = new HBox();
        Button button1 = new Button("Add               ");
        Button button2 = new Button("Remove   ");
        HBox.setHgrow(button1, Priority.ALWAYS);
        HBox.setHgrow(button2, Priority.ALWAYS);
        button1.setMaxWidth(Double.MAX_VALUE);
        button2.setMaxWidth(Double.MAX_VALUE);
        hbox.getChildren().addAll(button1, button2);

        hbox.setPrefWidth(400);

        root.getChildren().add(hbox);
        primaryStage.setScene(scene);
        primaryStage.show();
    }
}

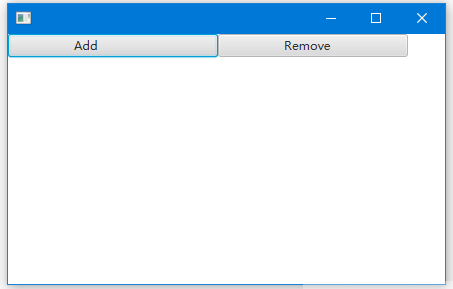

上面的代码生成以下结果。

在HBox的控件之间设置空格(空间)

import javafx.application.Application;
import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.layout.HBox;
import javafx.scene.layout.Priority;
import javafx.scene.paint.Color;
import javafx.stage.Stage;

public class Main extends Application {
    public static void main(String[] args) {
        Application.launch(args);
    }

    @Override
    public void start(Stage primaryStage) {
        primaryStage.setTitle("");
        Group root = new Group();
        Scene scene = new Scene(root, 300, 250, Color.WHITE);

        HBox hbox = new HBox(8);// space
        Button button1 = new Button("Add               ");
        Button button2 = new Button("Remove   ");
        HBox.setHgrow(button1, Priority.ALWAYS);
        HBox.setHgrow(button2, Priority.ALWAYS);
        button1.setMaxWidth(Double.MAX_VALUE);
        button2.setMaxWidth(Double.MAX_VALUE);
        hbox.getChildren().addAll(button1, button2);

        hbox.setPrefWidth(400);

        root.getChildren().add(hbox);
        primaryStage.setScene(scene);
        primaryStage.show();
    }
}

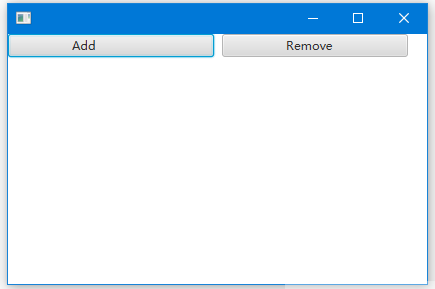

上面的代码生成以下结果。

HBox设置填充和间距

import javafx.application.Application;
import javafx.geometry.Insets;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.layout.HBox;
import javafx.stage.Stage;

public class Main extends Application {
    public static void main(String[] args) {
        Application.launch(args);
    }

    @Override
    public void start(Stage primaryStage) {
        primaryStage.setTitle("HBox Test");

        // HBox
        HBox hb = new HBox();
        hb.setPadding(new Insets(15, 12, 15, 12));
        hb.setSpacing(10);

        // Buttons
        Button btn1 = new Button();
        btn1.setText("Button1");
        hb.getChildren().add(btn1);

        Button btn2 = new Button();
        btn2.setText("Button2");
        hb.getChildren().add(btn2);

        Button btn3 = new Button();
        btn3.setText("Button3");
        hb.getChildren().add(btn3);

        Button btn4 = new Button();
        btn4.setText("Button4");
        hb.getChildren().add(btn4);

        // Adding HBox to the scene
        Scene scene = new Scene(hb);
        primaryStage.setScene(scene);
        primaryStage.show();
    }
}

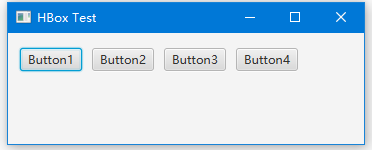

上面的代码生成以下结果。
