Struts2 模型驱动实例

这里我们创建一个web工程为:struts2-modeldrive ,用于讲解演示Struts2模型驱动这一章内容的学习。

如果一个动作实现了“模型驱动”- ModelDriven 接口,它就获得了表单数据自动传输到对象的额外能力。请参见下面的完整的例子:

1. 域对象

一个顾客(customer)对象,有 setter 和 getter 方法。

Customer.java


package com.codeinn.common;

public class Customer{

	String name;
	int age;

	public String getName() {
		return name;
	}
	public void setName(String name) {
		this.name = name;
	}
	public int getAge() {
		return age;
	}
	public void setAge(int age) {
		this.age = age;
	}

}

2. 动作 - Action

Action类,实现了模型驱动ModelDriven 接口,声明getModel()方法返回客户的对象。当表单数据提交到这个动作,它会自动将表单数据传输到客户的属性。

客户对象必须手动初始化。

CustomerAction.java


package com.codeinn.common.action;

import com.codeinn.common.Customer;
import com.opensymphony.xwork2.ActionSupport;
import com.opensymphony.xwork2.ModelDriven;

public class CustomerAction extends ActionSupport
	implements ModelDriven{

	//have to initialize it
	Customer customer = new Customer();

	public String execute() throws Exception {

		return SUCCESS;

	}

	public Object getModel() {

		return customer;

	}
}

3. JSP页面

JSP页面的模型驱动(ModelDriven)的示范。

addCustomer.jsp

<%@ taglib prefix="s" uri="/struts-tags" %>
<html>
<head>
</head>

<body>
<h1>Struts 2 ModelDriven example</h1>

<h2>Add Customer</h2>
<s:form  action="customerAction" >
  <s:textfield name="name" label="Name" />
  <s:textfield name="age" label="Age" value=""/>
  <s:submit />
</s:form>

</body>
</html>

success.jsp

<%@ taglib prefix="s" uri="/struts-tags" %>
<html>
<head>
</head>

<body>
<h1>Struts 2 ModelDriven example</h1>

<h2>Customer Details</h2>
Name : <s:property value="name" /><br>
Age : <s:property value="age" /><br>

</body>
</html>

4. struts.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
"http://struts.apache.org/dtds/struts-2.0.dtd">

<struts>
 	<constant name="struts.devMode" value="true" />

	<package name="default" namespace="/" extends="struts-default">

		<action name="addCustomerAction"
			class="com.codeinn.common.action.CustomerAction" >
		    <result name="success">pages/addCustomer.jsp</result>
		</action>

		<action name="customerAction"
			class="com.codeinn.common.action.CustomerAction" >
		    <result name="success">pages/success.jsp</result>
		</action>

	</package>

</struts>

5. 示例

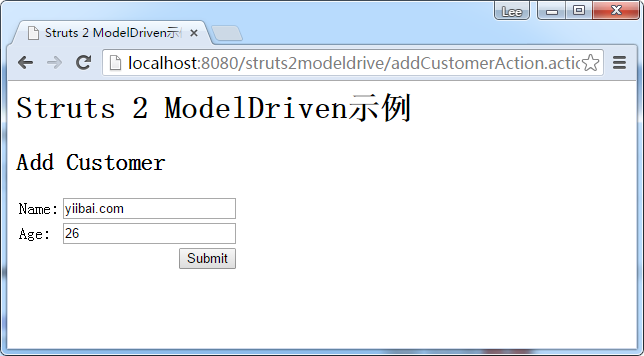

访问客户表,填写表格 (name : “yiibai.com”, age ” “26”) 并点击提交按钮,表单数据(name & age) 将自动转移到客户的属性(name & age) (按属性名称匹配)。

http://localhost:8080/struts2-modeldrive/addCustomerAction.action

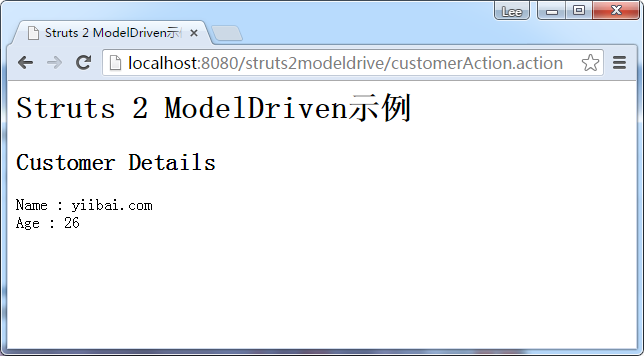

http://localhost:8080/struts2-modeldrive/customerAction.action



工程源代码下载 - http://pan.baidu.com/s/1hqxyjf2
